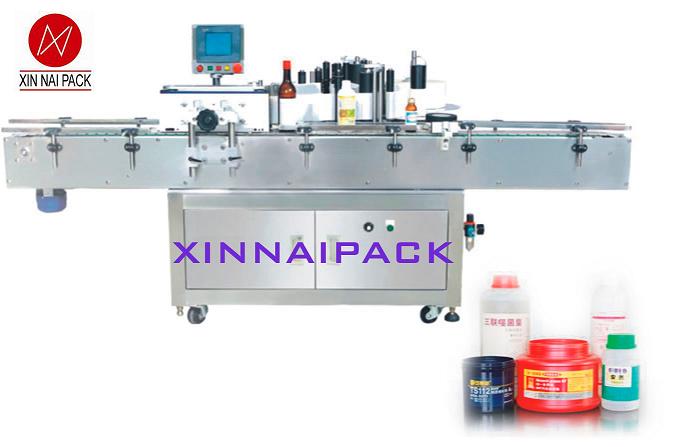

LYH300 High Speed Servo Round Bottle Labelling Machine
■High Speed Servo Round Bottle Labelling Machine is suitable for columniform packing object or columiform object,  the machine for cone-shape object can be customized
■ink jet printer can be customized installing
■be in dependent or join the production line
technic paramter::
■ Machine Size:2400(L)×1100(W)×1250(H)mm
■ Output Speeed: 60-300pcs/min
■ Hight Label Object: 30-280mm
■ Is suitable the bottle diameter:30-120mm
■ Label Hight(mm):5-140mm
■ Label Length(mm): 25-300mm
■ Pastes the sign precision:±1mm
■ Roll inside diameter 76mm
■ (Roll Outside Diameter:420mm
■ Power Supply: 220V 1.5kw 50/60HZ
■ printer using air supply:5Kg/c㎡
matching products:
■high speed hot steel letters pringting machine(max speed can be 300 bottles/min)
■ink jet printer(max speed is 300 bottles/min)
■transparent lable monitor
■synchronous belt
■sponge wheel and synchronous belt
■opper letter/steel letter
■self-adhesive label
