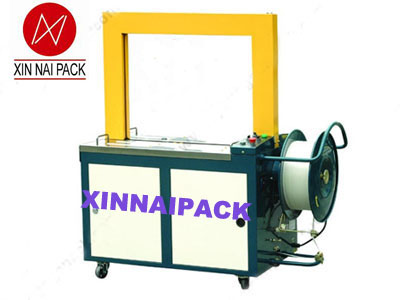

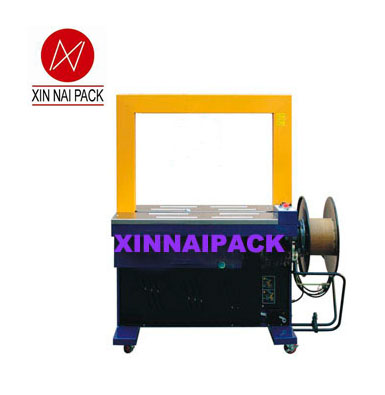

Economic standard automatic packing machine
Feature:
XN-200 strapping machine (the high-profile economic standard) can be automatically packaged, but the table without power, need to manually push of packaging materials to pass packer. The principle of the packer is to use the bundled products or packages with wrapping, and then tighten both ends of the thermal effect of melting and or use of covered buttons and other materials connected to the machine. Function is to make plastic strapping band can be tied closely to the surface of the package to ensure that packages in the transport, storage is not due to binding is not strong and scattered, while also binding tidy. Binding Machine Price: automatic or fully automatic strapping machine strapping price quote is more than twice the semi-automatic equipment.
Standard automatic strapping machine series products to tie a continuous and reliable plastic packages with closely aligns the surface, the joint firm, the machine electrical safety, noise, smoke and other work does not affect the health of operators.
XN-200 automatic strapping machine has the following characteristics:
1: clamshell panel, maintenance, protection, support convenience.
2: The new electric devices, heating speed, long life.
3: single-chip electronically controlled, full-featured, easy to use.
4: with optional automatic feed device.
The strapping machine for food, medicine, hardware industries carton packaging, wooden packaging, paper packaging and other small goods automatically packaged bundle.
Technical parameters:

power
1PH:100V-240V(50/60Hz)
3PH:200V-480V(50/60Hz)
max tension strength
60Kgs
bome size
W850/800* H600
table height
Standard.820(min.650)
PP strap width
9mm-18mm
Minimum packing goods
60mm
packing speed
2sec./strap
Volume
(W)1410 (D)600 (H)1500
PP Strap Coin
200mm
weight
230Kgs
